What is  the sound of Eddie Current? The sound of engagement!

Most headphone amps all sound pretty good at first, but in less than an hour of listening, fatigue or boredom can take over. Eddie Current vacuum tube amplifiers  eliminate the sonic  barrier between you and the music. The sound stage brings back the golden age of audio and delivers ultimate listening  pleasure.

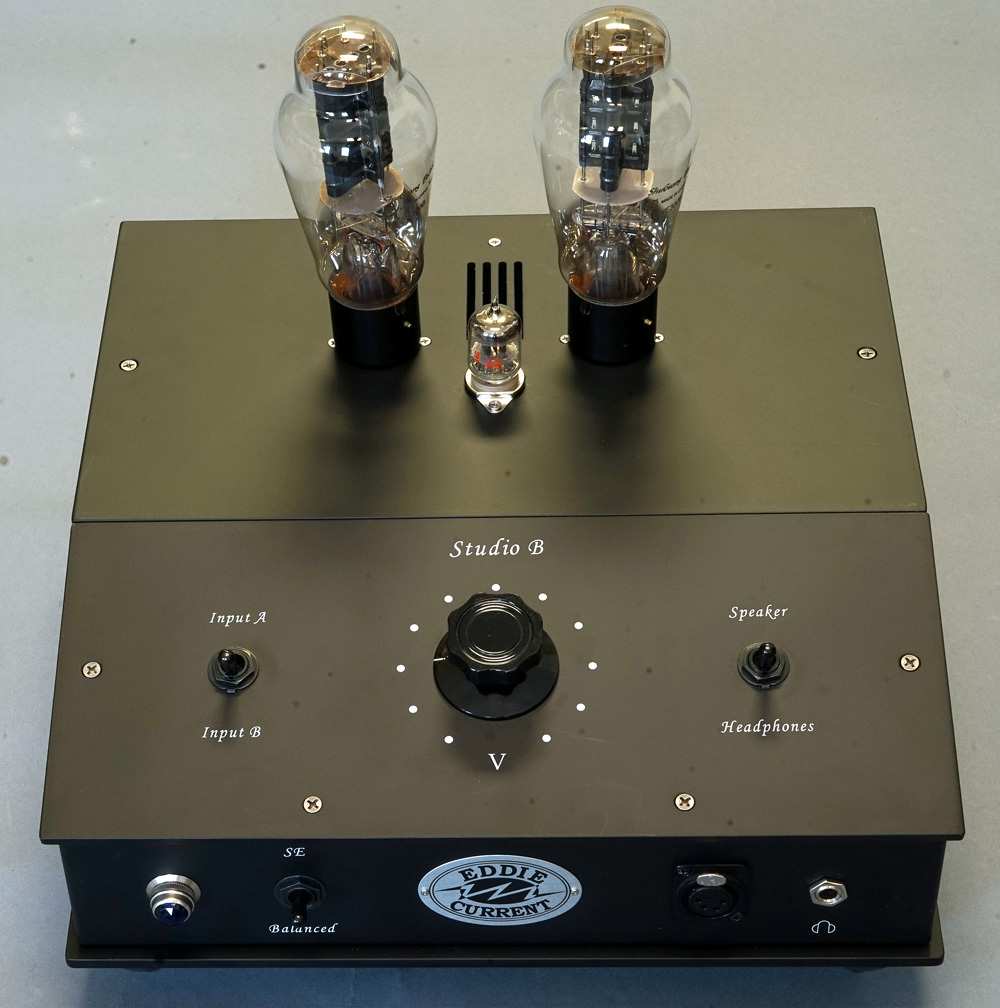

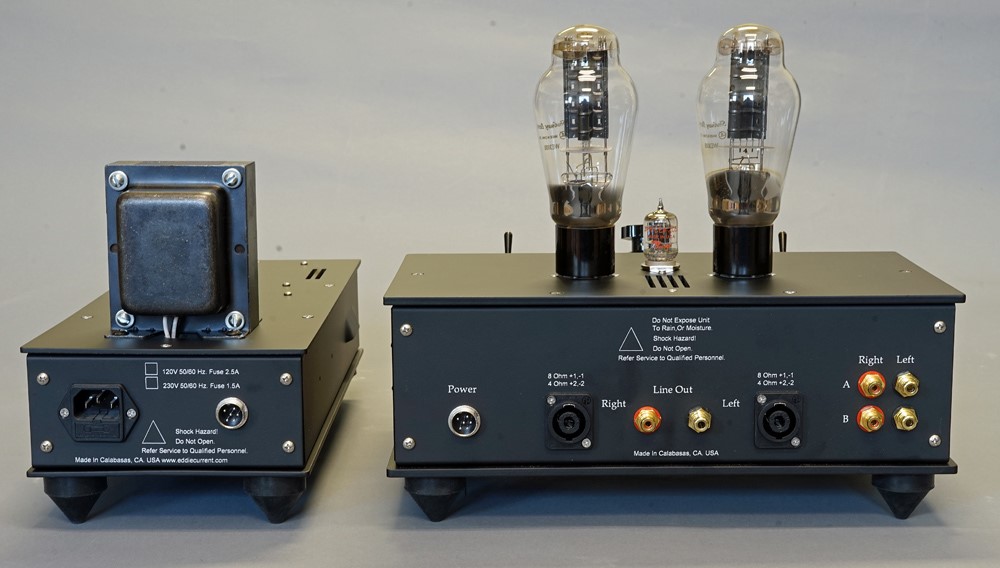

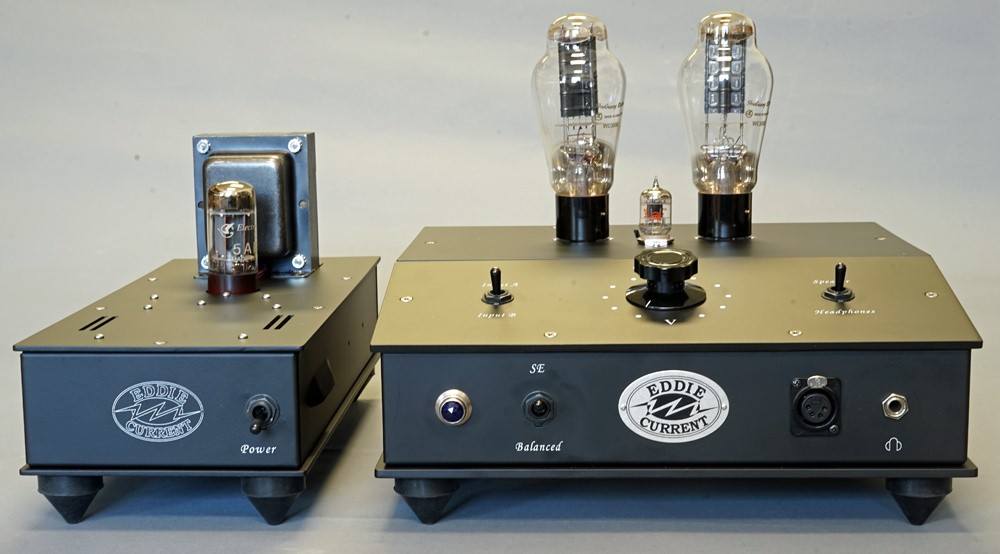

Eddie Current Studio B Now Offered in 300B OR 2A3 Version:

With the demand for the Studio B, Eddie Current will run a limited number of amps in 2022 and was able to modify the new run to accommodate either a 300B or 2A3 version!

The Studio B  brings back the popular design of Eddie Current’s Balancing Act but with the exquisite balance of the BA’s deep rich sound stage and the lively presentation of the top-of-the-line Studio.
Studio 300B features custom output transformers, rare earth magnetic core with tertiary feedback standard of 1.75 dB (as with Studio).







The Studio B is fashioned after the pro look of a mixing board– mastering ultimate listening on both your favorite headphones or high efficiency speakers!

 $3500 plus shipping; (price includes JAN 5670 Driver & 5AR4 rectifier tubes)

 Order here

SPECIFICATIONS

  • Custom output transformers, rare earth magnetic core with tertiary feedback standard of 1.75 dB (as with Studio).
  • Minimal point-to-point wiring.
  • Balanced headphone drive.
  • Two input selector switch, two pairs RCA unbalanced inputs.
  • Speaker kill switch.
  • 100K Alps Blue Velvet volume control.
  • One pair Speak-On speaker outputs. 4, and 8 ohm.
  • 4-foot detachable umbilical cord.
  • Vacuum tube rectified passive LC power supply.
  • Will drive 4,8 ohm speakers to 4 watts. Input sensitivity 1.5V for full power.
  • Power bandwidth -1dB 10Hz-100kHz.
  • Recommended headphone load 8 ohms or higher.
  • Power into 32 ohms 2W.
  • Power into 100 ohms 800mW
  • Power into 300 ohms 400mW.
  • Typical headphone frequency response–balanced or SE: -1dB 10Hz-100kHz.
  • Balanced line output 11 volts into 600 ohms -1dB 10Hz-100kHz.

Dimensions:

  • Main amp: 12” wide by 12” deep by 5.5 high (w/o tubes). Top control knob, three toggle switches, input select, speaker kill, balanced, SE headphone select. 22 pounds.
  • Power supply: 6” wide, 14” deep, 10” high, 12 pounds.



Invitation to Hear Eddie Current Headphone Amps!

If you would like to hear the Studio B on headphones and/or speakers, inquire by emailing  ckmoth@hotmail.com

Eddie Current, LLC, 2800 Wake Ln, Oxnard CA 93035;
P 818-651-2734; E  ckmoth@hotmail.com
